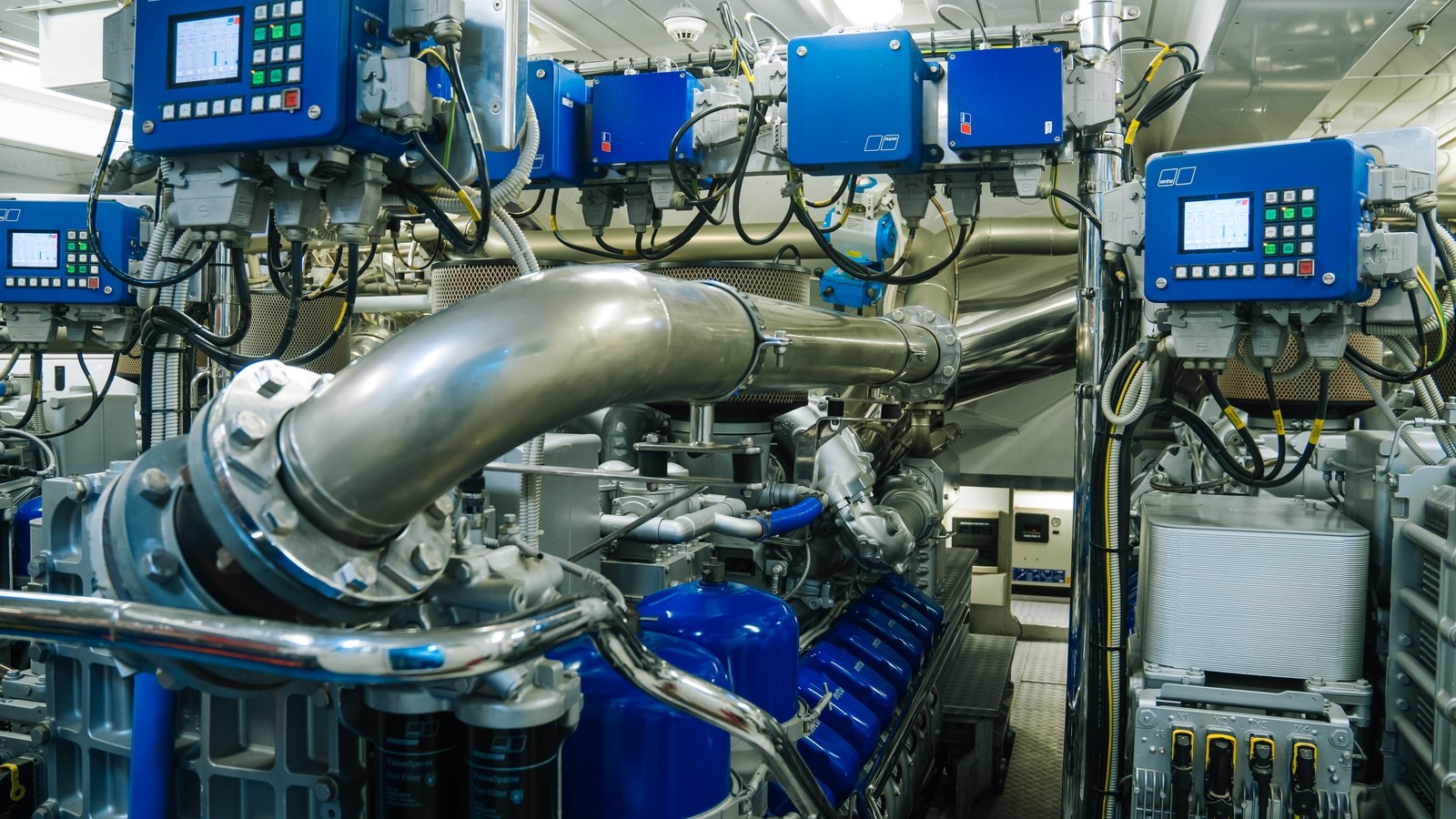

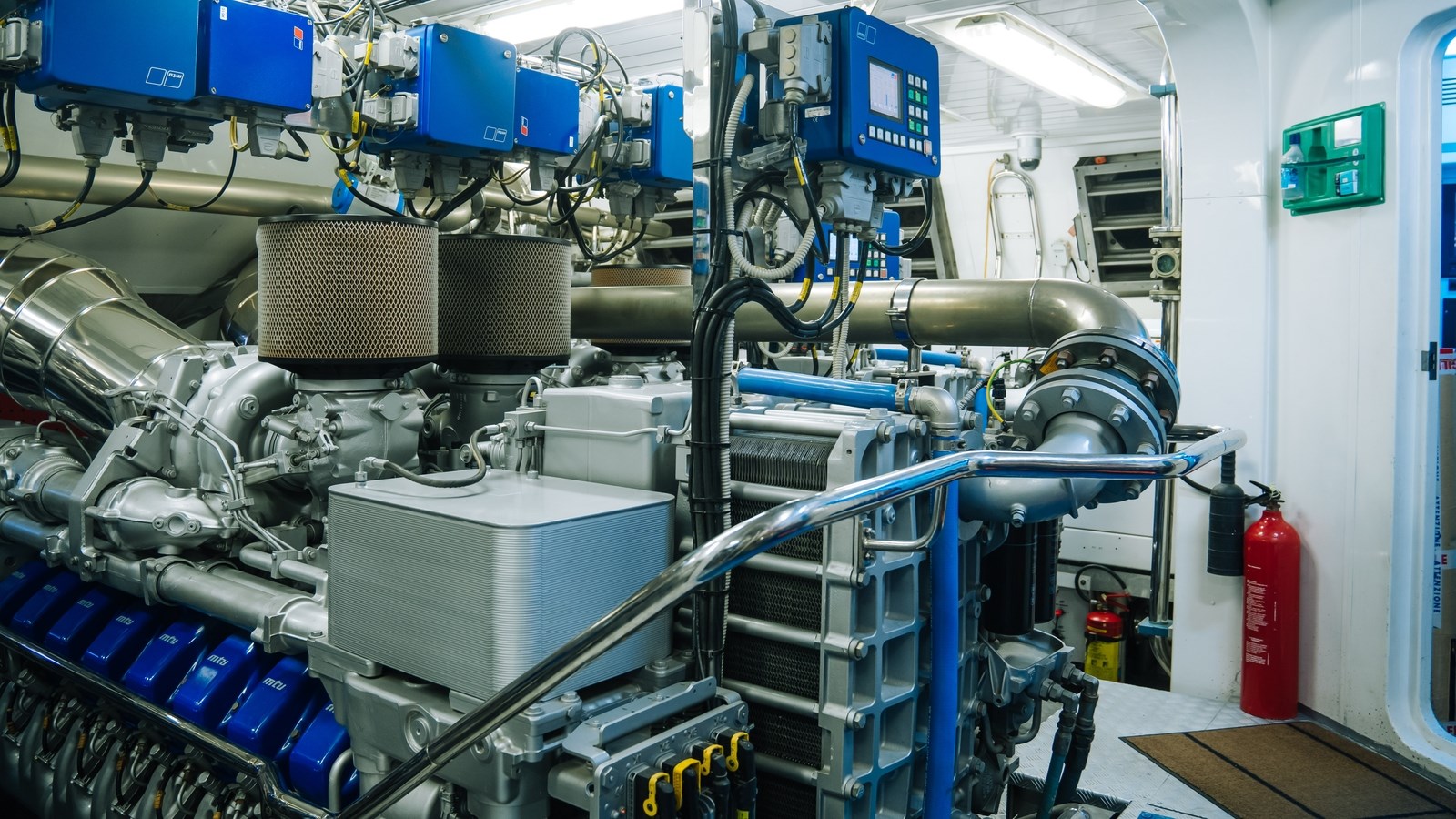

Generators:

• 2 x Kohler 400V 50Hz 100KW
• Generator Hours: Port: 4189, Starboard: 4322

Electricity:

• 380v, AC, 50hz, 380 3 Phase AC, 24v DC'

Batteries:

• Engine: 12 x 12V 850A
• Services: x 12 Cell
• Emergency: 2 x 12V Gell Excide
• Electro: 2 x 12V Excide

Blige Systems:

• 1 x Gianneschi ACB 451 400VAC/501 bt Electric Pump
• 1 x Gianneschi ACB 431 24DC Electric Pump
• 1 x Gianneschi P&B MBMA 50-160B Diesel Emergency Pump outside Engine Room
• Electric Remote Operated Valves
• Bilge Level Alarm
• Vacuum and Pressure Gauges

Power Management System:

• The power management system has a standalone PLC-based system; data exchange to the ship monitoring system is used to visualize all parameters on the displays.

Fuel System:

• 3 x Fuel Priming & 1 x Tender Filling
• 1 x Gianneschi Excelsior 1 GB Priming Pump
• Mahle NFV KFWA-3by max 4400 l/h Engine Fuel Pre-Filter
• Tank Level Gauges

HVAC:

• 2 x Frigit C18-400VAC, 3Ph, 50 Hz Seawater Cooled Chiller Unit
• 6 x Refrigerator Circuits
• 6 x Compressors
• 3 x Cylinders
• Total Refrigeration Output 240 000 BTU/h
• Total Heating Output 280 000 BTU/h
• Summer Conditions:
  • External Air 38 °C - 100 °F, HR 80%
  • Internal Air 23 °C- 73 °F, Max HR 45±5%
  • Sea Water Temperature: Max 30°C - 86 °F
• Winter Conditions:
  • External Air 0°C / 32 °F
  • Internal Air 22 °C / 72 °F, max HR 45±5%
  • Sea Water Temperature

Fresh Water System:

• Water Pressure System: 2 x Gianneschi JET 4 B.C.E. 400C/3ph/50Hz Electric Pumps
• Hot Water Circulation System: 1 x Gianneschi Z25 230V/50Hz Electric Pump
• Hot Water Expansion Tank: 1 x Gianneschi 20 Lt
• 4 x Gianneschi 150LU Each Stainless Steel Boilers / Heating Element 1.5+1.5kW
• 1 x Idromar Reverse Osmosis Water Maker / MC 3J, 180 IUh Fresh Water Sterilization System Idromar
• 1 x Idromar Water Softener
• 1 x Silver Ion / Chlorine Dosing Station
• 1 x Active Carbon Filter
• 1 x UV Sterilizer
• 1 x Mesh Filter 10 Micron; Level Gauge

Steering System:

• Rolls-Royce

Bow Thruster:

• Side Power

Fuel Filters:

• Racor

Fire / Bilge Pump:

• 1 x Gianneschi ACM 50 l BT-400VAC/3ph/50Hz E.pump
• 1 x Gianneschi ACM 50 l BT E.pump
• 1 x Gianneschi  P&B MBMA 50-160B Diesel Emergency Pump outside Engine Room
• Electric Remote Operated Valves
• Bilge Level Alarm
• Vacuum and Pressure Gauges

Boilers:

• 4 x Gianneschi 120 Lt Stainless Steel Boilers

Air Conditioning:

• 2 x Sea Water Cooled
• 3 x Refrigerator Circuits
• 6 x Compressors
• 6 x Cylinders

Fire Fighting:

• 1 x Gianneschi ACB 451 400VAC/501 bt Electric Pump
• 1 x Emergency Pump Outside Engine Room
• 1 x Gianneschi P&B MBMA 50-160B Diesel
• Vacuum and Pressure Gauges

Smoke Detection System:

• Central Fire Alarm Panel, in the Wheelhouse (Technical Space)
• Smoke Detectors in each Accommodation Area
• Smoke Detectors in Engine Room and Garages
• Heat Detectors in Galley and Engine Room
• Acoustic Alarm at Wheelhouse
• Alarms in Engine Room, Accommodation Areas, Owner's Suite, Wheelhouse, and Crew Areas.
• Call Point in proximity of Escape Exits

VHF:

• 1 x Sailor VHF DSC Class A - IMO FM8900S in Wheelhouse
• 1 x Sailor VHF Remote Display in Flybridge

SSB Radio:

• 1 x Furuno SSB HF/MF GMDSS Class A Wheelmark Approved IMO

Intercom & Alarm Systems:

• 1 x Intercom System - Steenhens
• 1 x Main Panel & Process Unit BR-510/520-E-10
• 1 x Alarm Panel BR-540 in Crew Mess
• 1 x Alarm Panel BR-540 in Captain's Cabin

• WiFi: Pepwave Max-BR1 5G Pro; Can be connected to Starlink
• Antenna: Pepwave Marine 40G

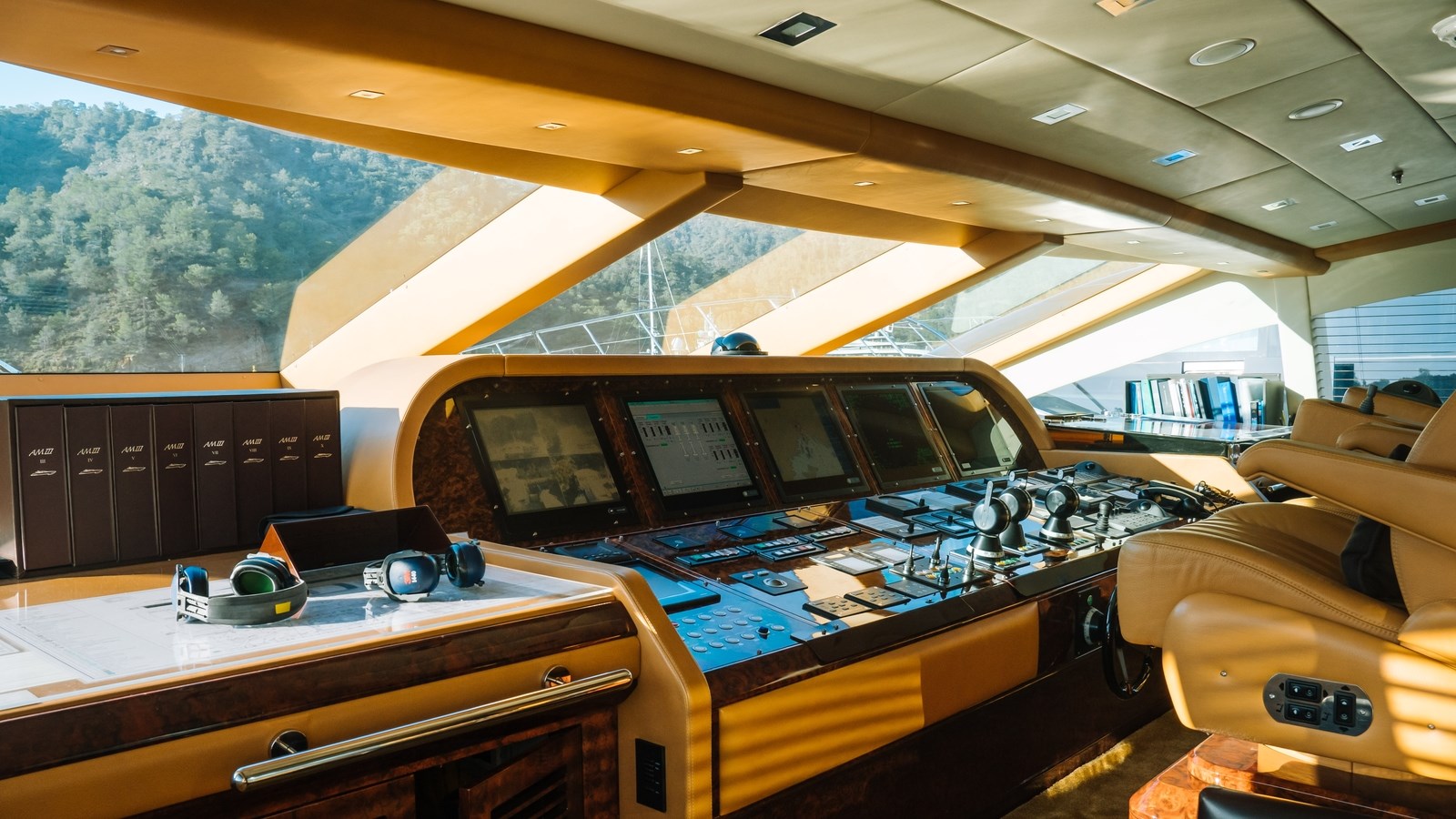

Chart Plotters & Displays:

• 1 x Furuno NavNet VX-2 Chart Plotter
• 1 x 24" GC8624 GPSMAP Display
• 1 x Furuno ECDIS FEA-2807

• 1 x Furuno GP-150 GPS


Radar:

• 1 x Furuno ARPA Radar (Dashboard / Seat Armrest)

Gyro & Autopilot:

• 1 x Furuno FA-150 AIS

Echo Sounders & Sonar:

• 1 x GSD25 1kW CHIRP Clear Vu / Side Vu
• 1 x Airmar M265LH Transducer
• 1 x Triducer PASS PLAST DST800
• 1 x Triducer Panoptix PS51-TH Front Vu NAVTEX

• 2 x 412 SHPP Galvanised High Tensile

Anchor Chains:

• 1 Chain x 140 m x 19 mm
• 1 Chain x 180 m x 19 mm

• CCTV
• PTZ Camera
• Axis Camera PTZ P5512E
  • Aft Deck Ceiling
  • Engine Room 1
  • Arch Rear View
• Axis Camera P1214E
  • Port Anchor
  • Starboard Anchor
• CCTV Display and Control Station
• Control Station
• Network
• TV Satelite
• Audio Visual

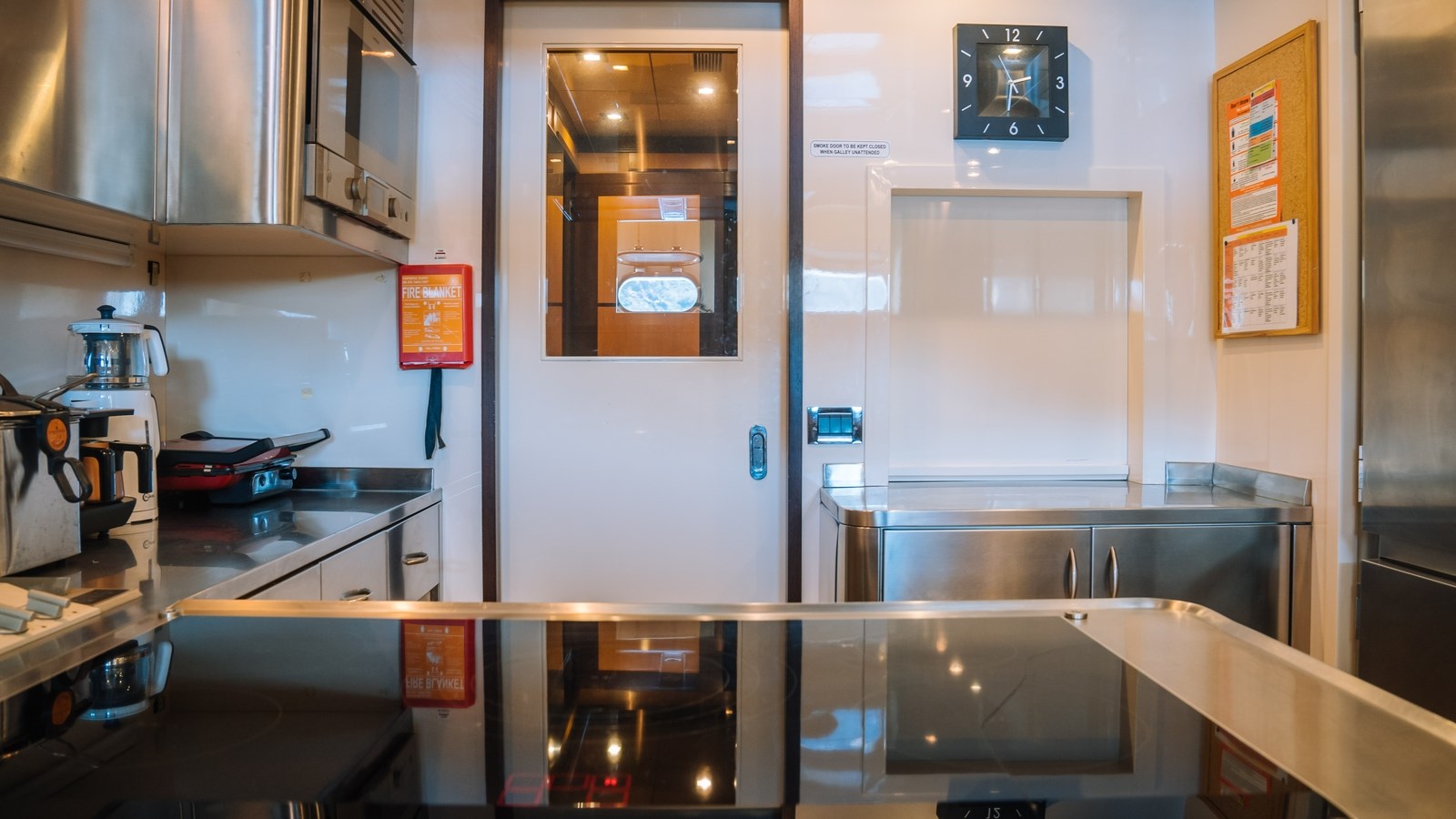

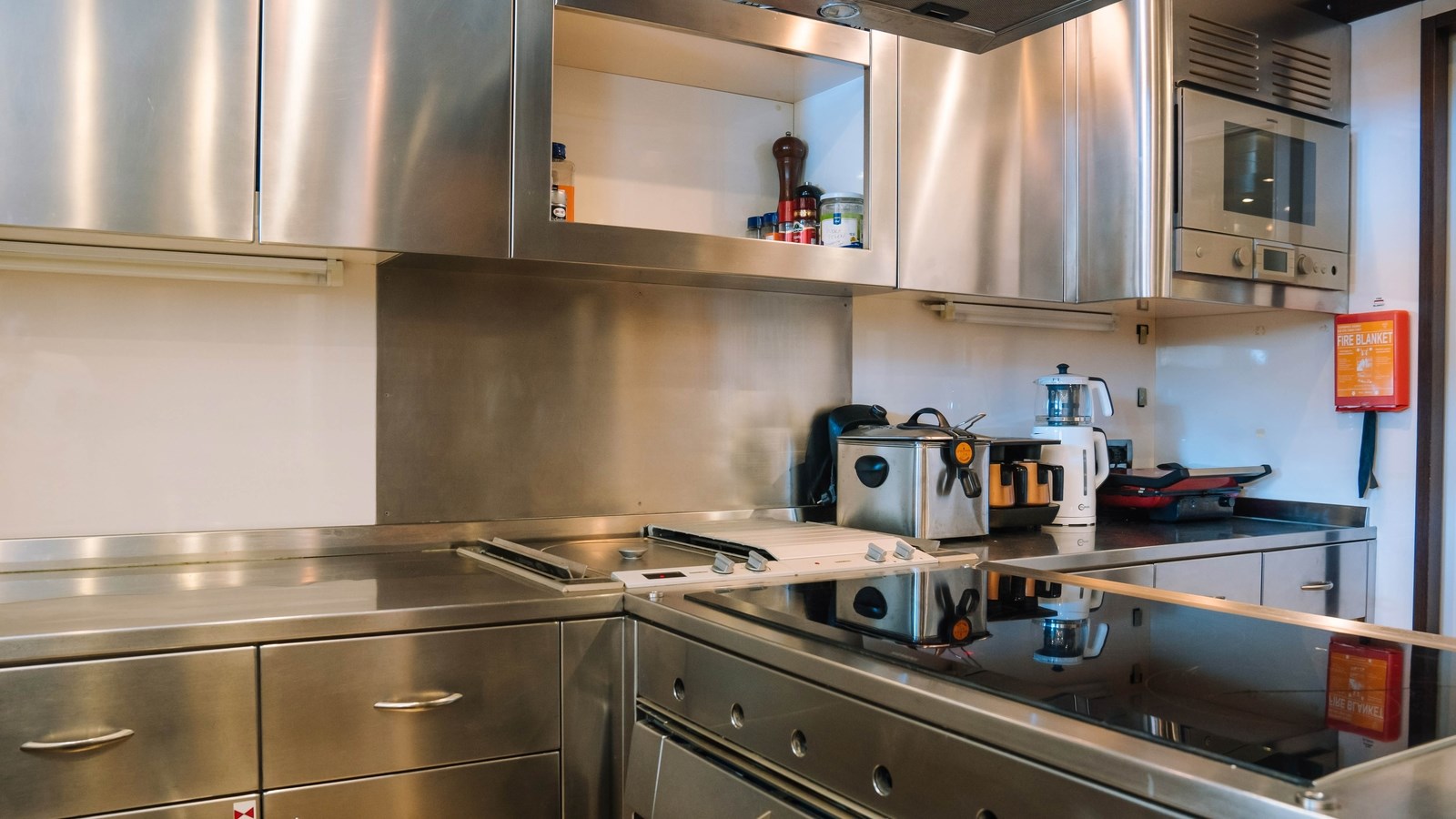

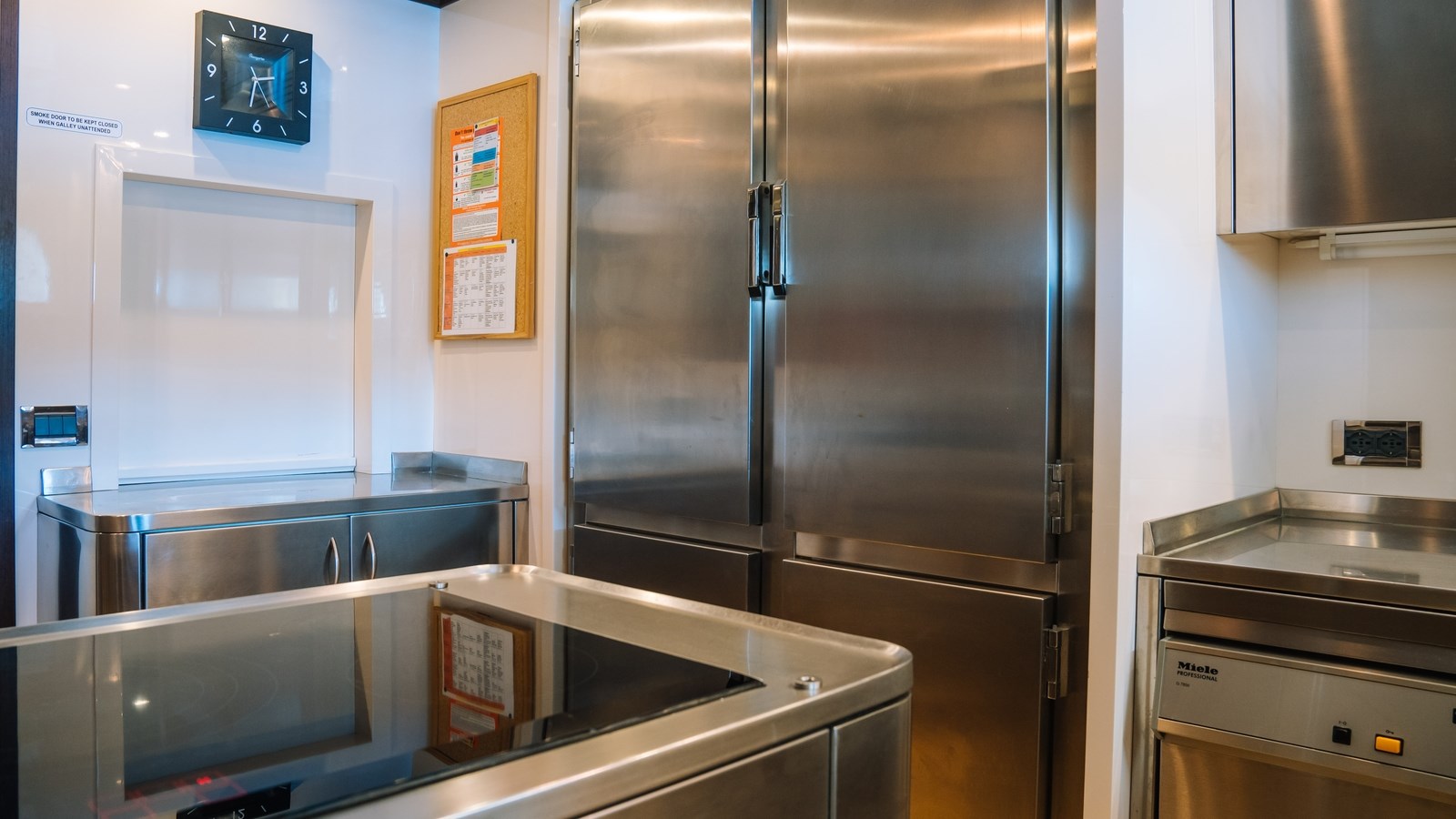

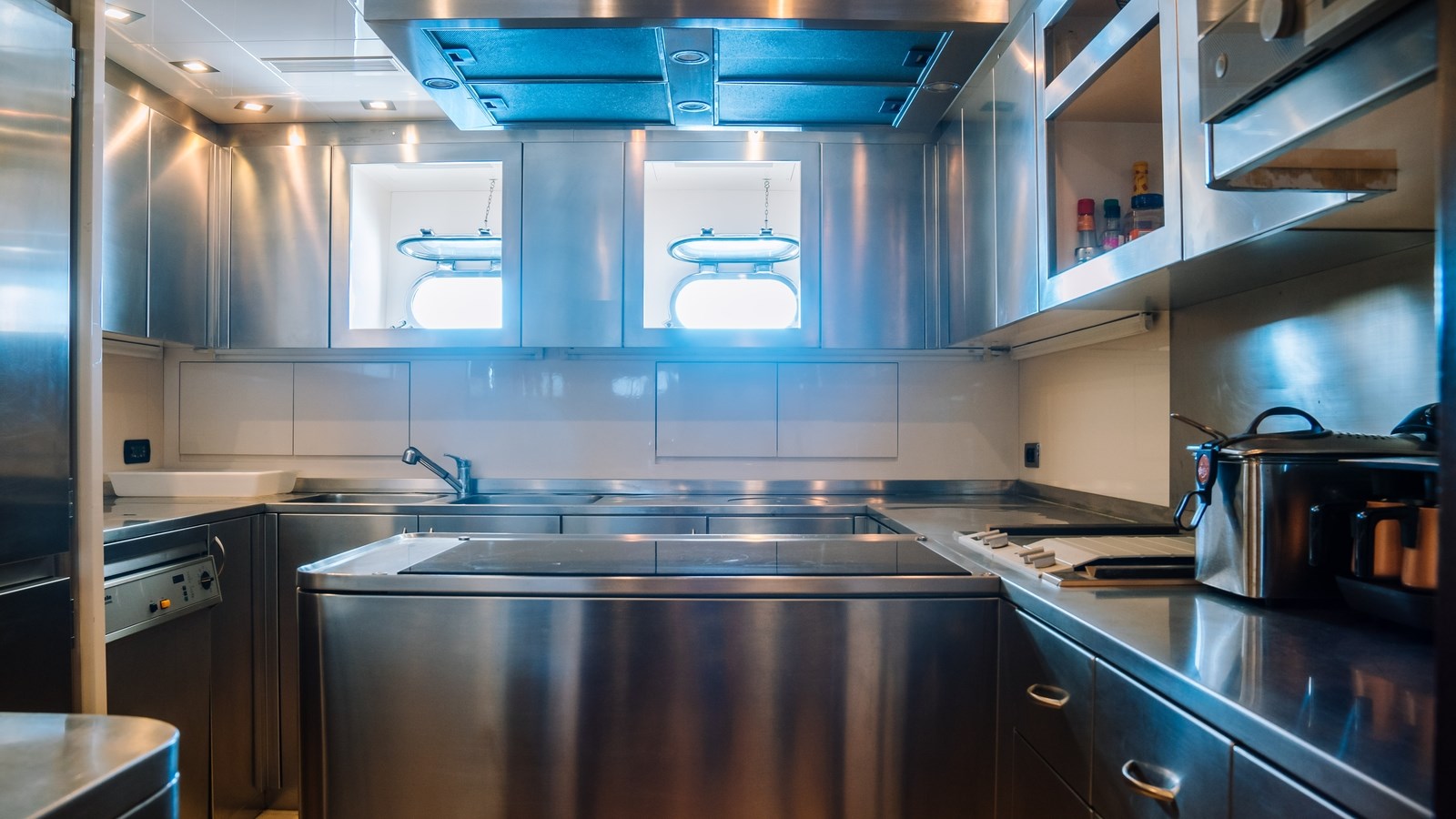

Galley Equipment:

• 1 x Zanussi AMPV712DT Professional Range with Professional Exhaust Hood
• 1 x Miele H 6860 BP Commercial Electric Oven
• 1 x Miele M 6032 Commercial Microwave Oven
• 2 x Miele PG 8056 Dishwasher
• 3 x Stainless Steel Double Sinks
• Custom-made Fridges and Freezers
• 1 x Miele KM6117 Hot Plate

Refrigeration System:

• Custom Made Fridges
• Insulated with Polyurethane Foam and Internally/Externally Lined with 1 mm Stainless Steel Sheets
• Each Compartment is provided with a specific Thermostat to be set in °C or °F
• Automatic switch for the light on and blowers off when the door is open
• Doors are bound with a heating system to avoid condensation
• Condensed water heated discharge
• Compressors remotely installed

Laundry Equipment:

• 2 x Miele FtW 6065 Plus Washers
• 2 x Miele PTI7136 Dryers

• Castoldi Diesel Jet 620 Jet Tender
• 2 x SeaDoo Jet-skis
• 1 x Kayak
• 1 x Wakeboard
• 1 x Waterski

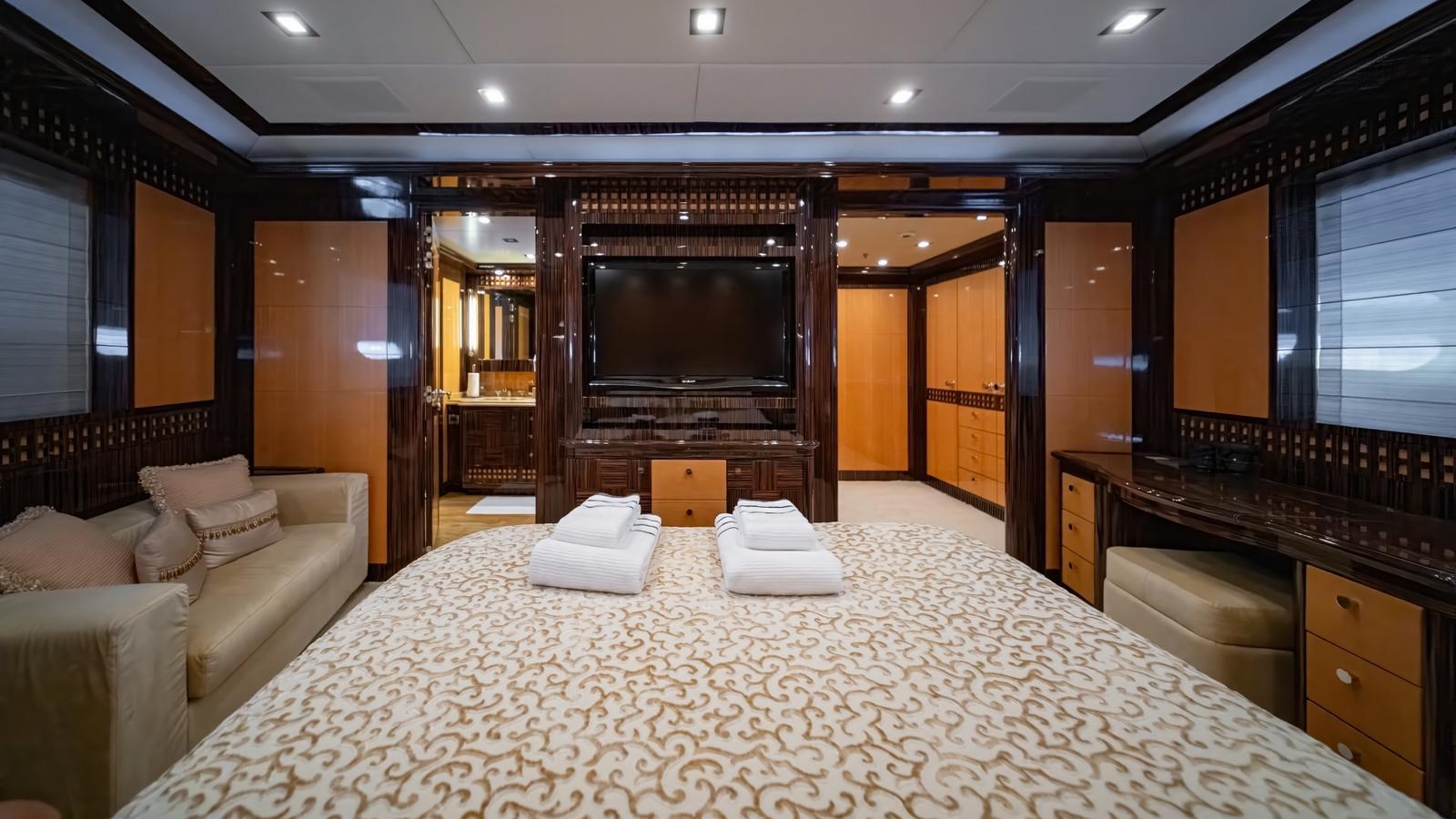

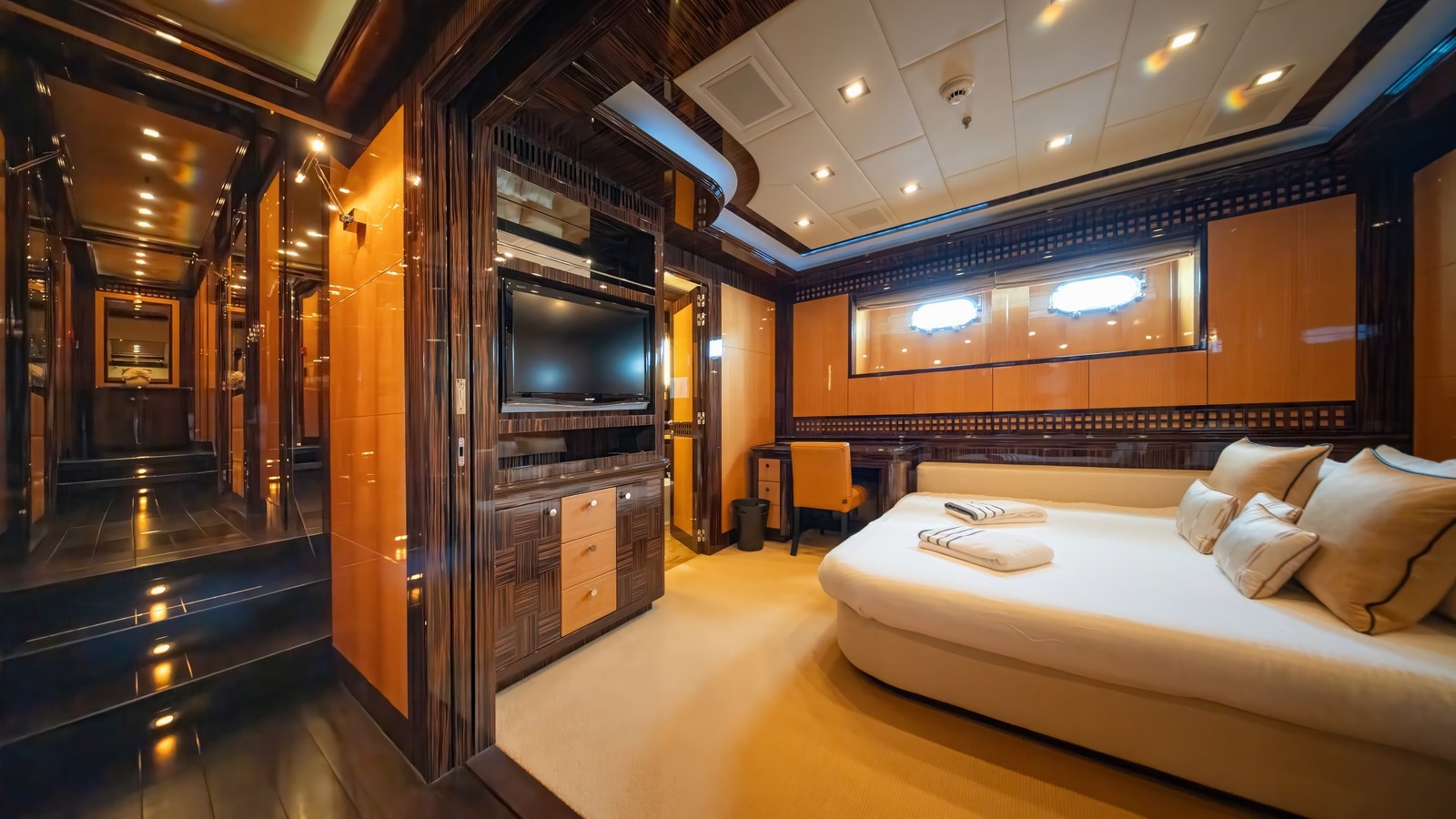

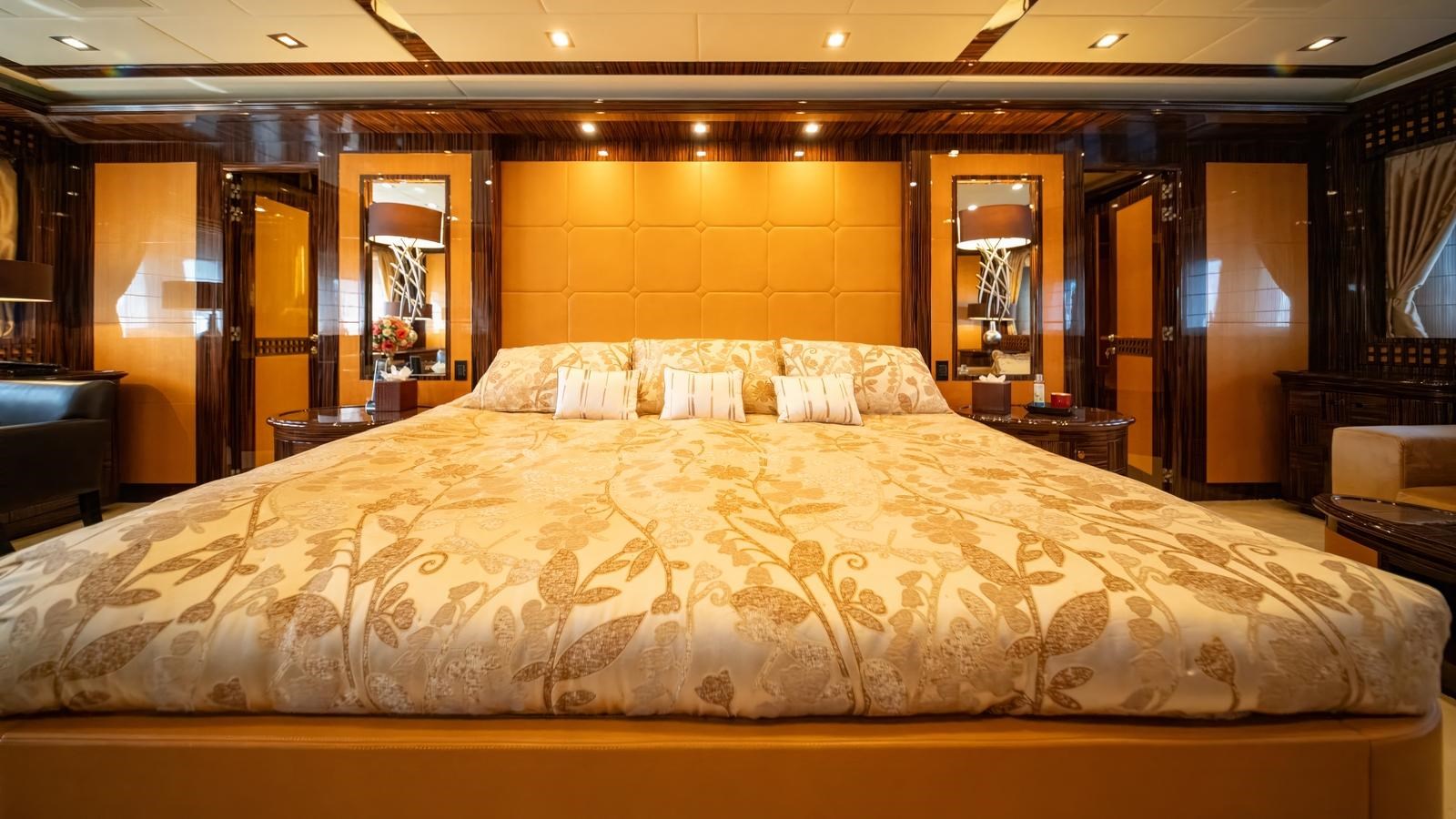

Master Cabin:

• King-sized bed
• Walk-in closet

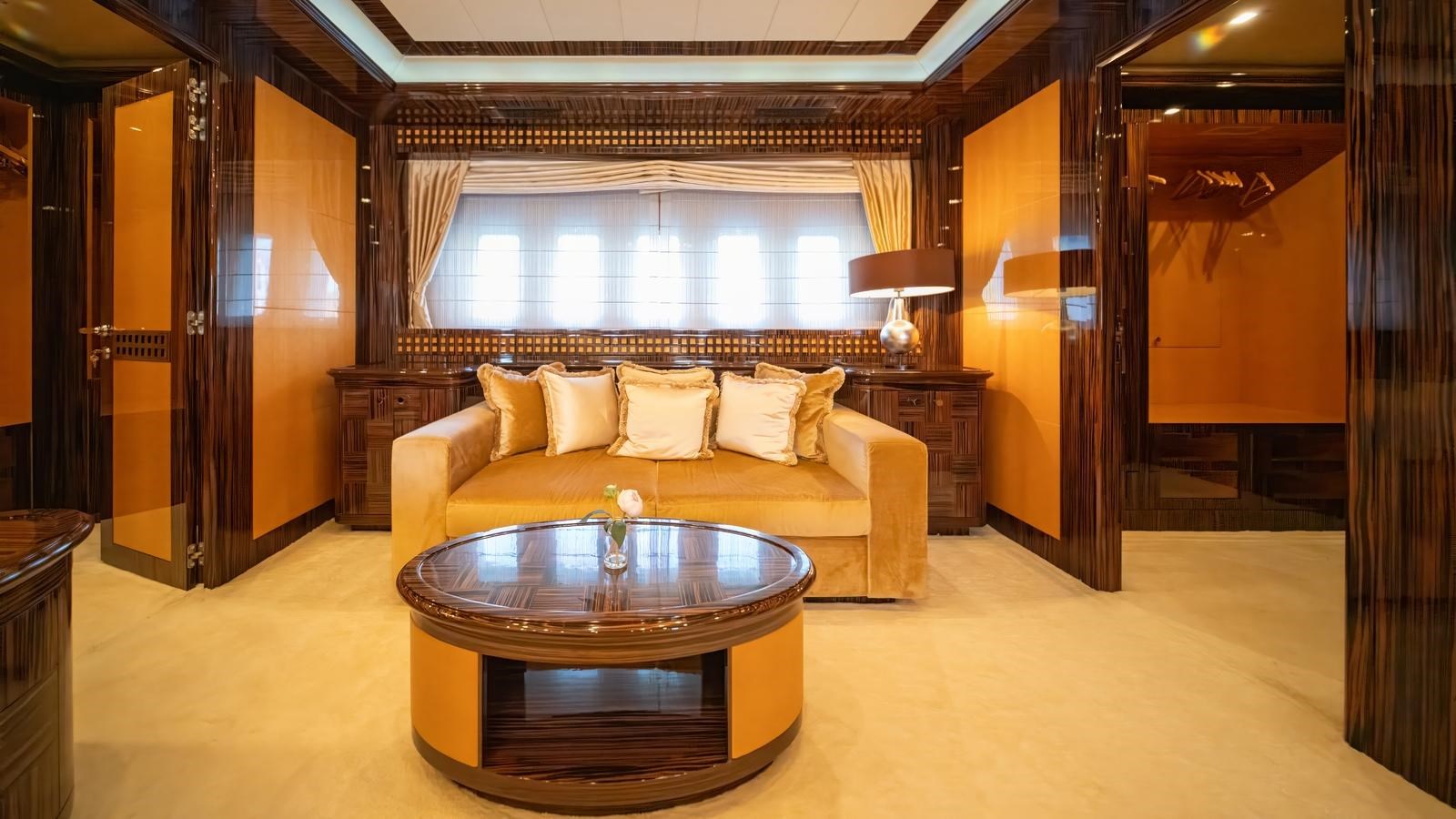

• Table seating area in the cabin

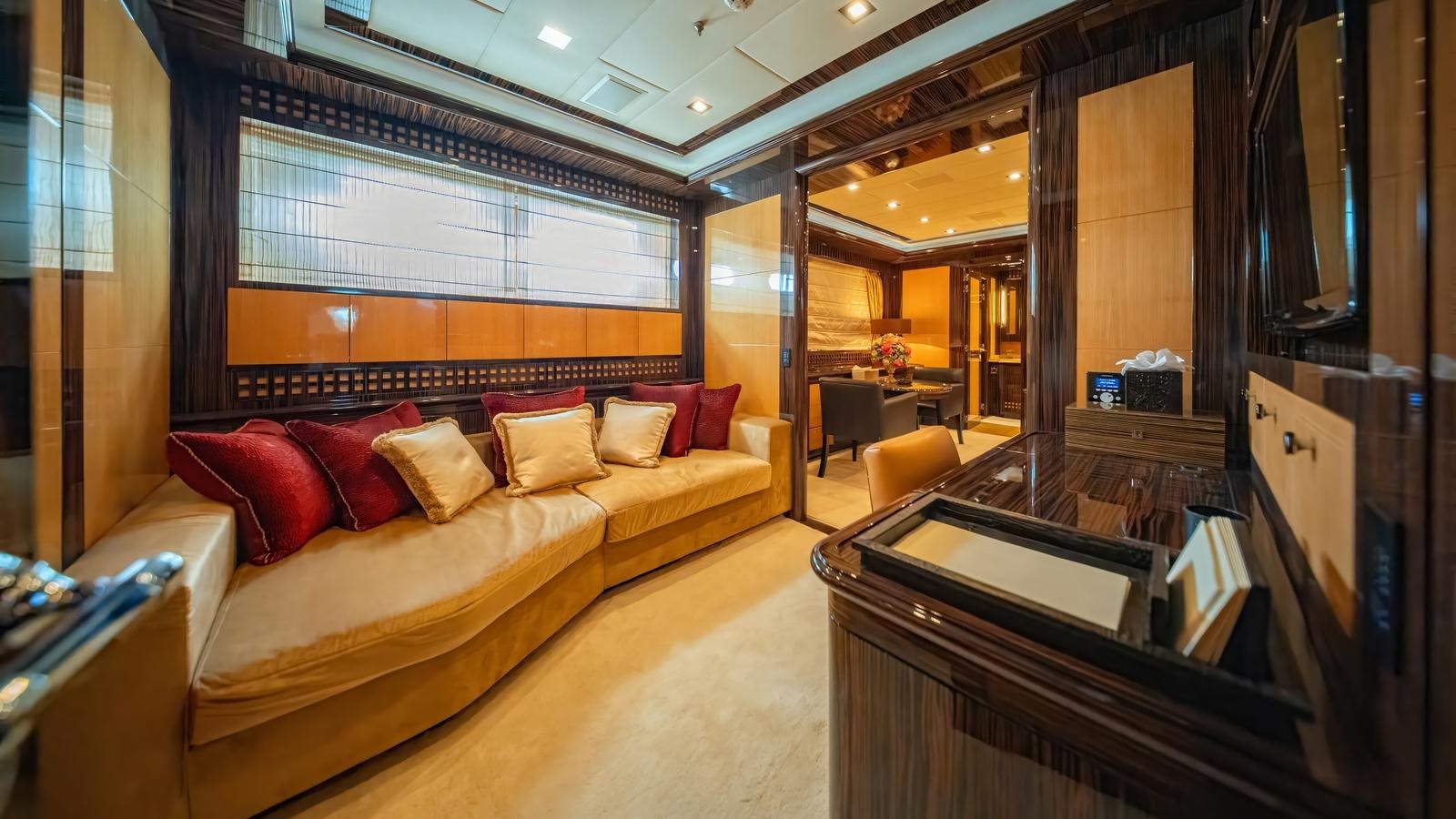

• Separate office area with a desk and couch

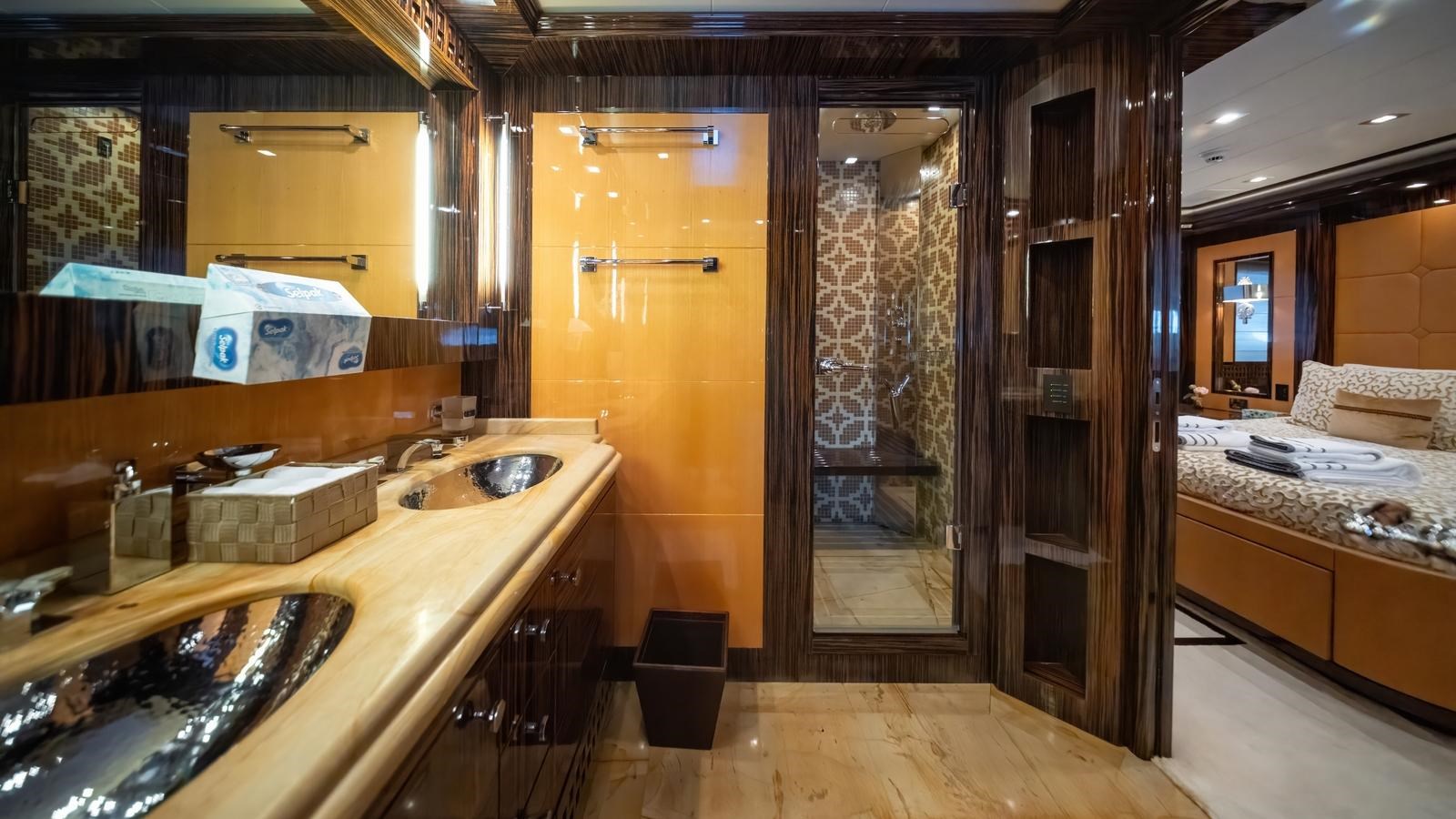

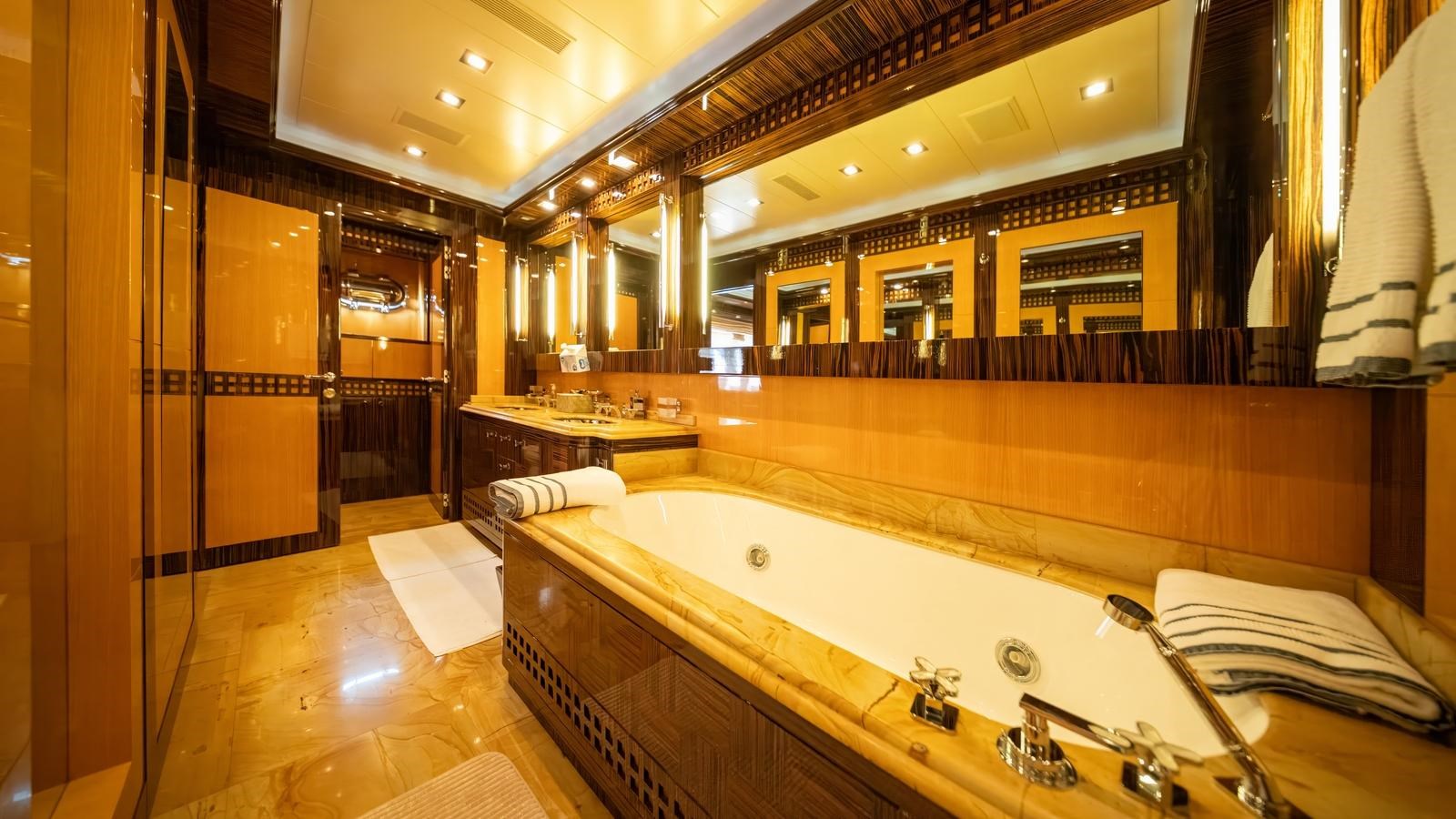

• Head featuring:
  • His and hers sinks
  • Full-size jacuzzi tub
  • Separate shower
  • Toilet

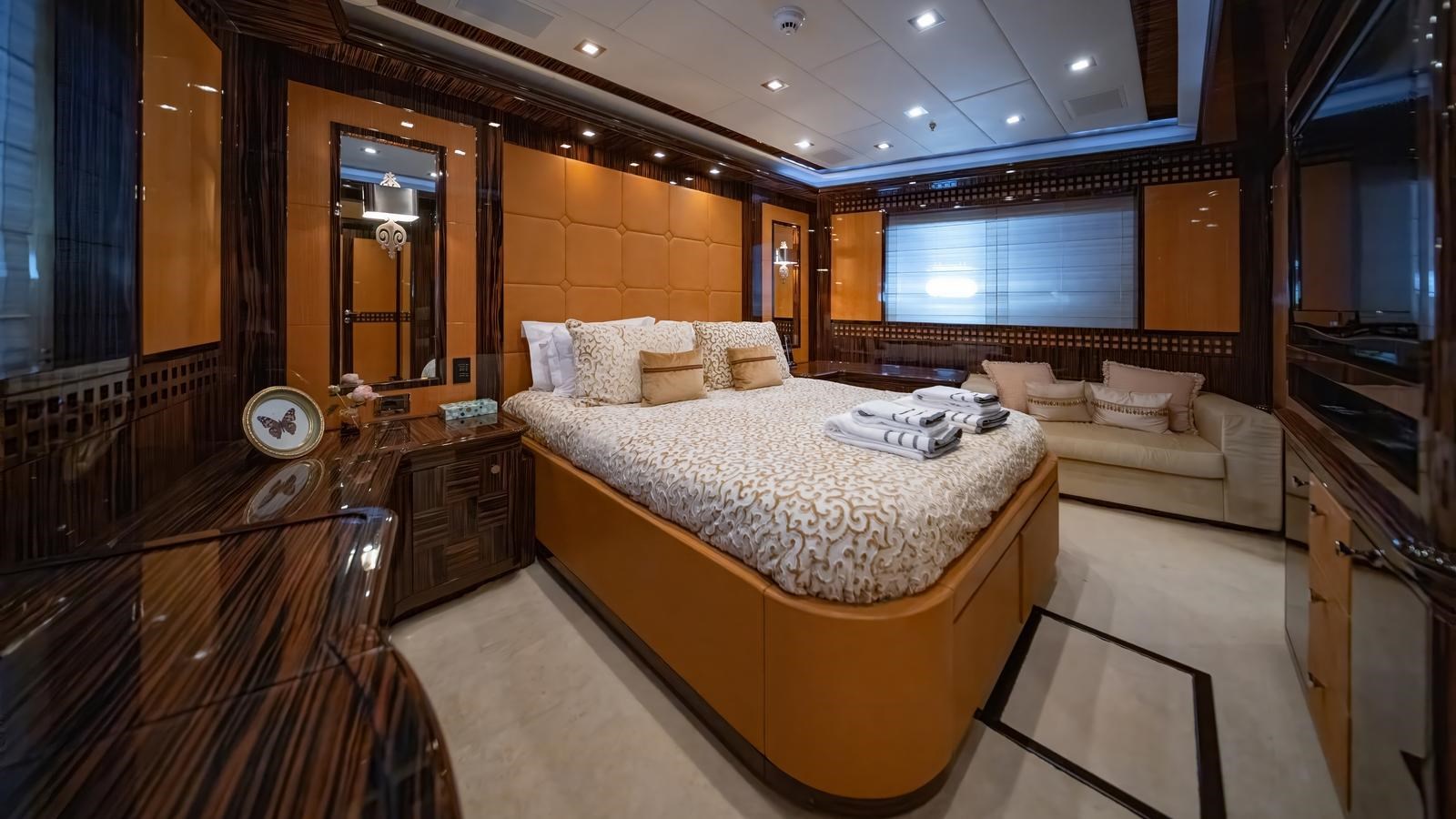

VIP Cabin:

• Queen-sized bed

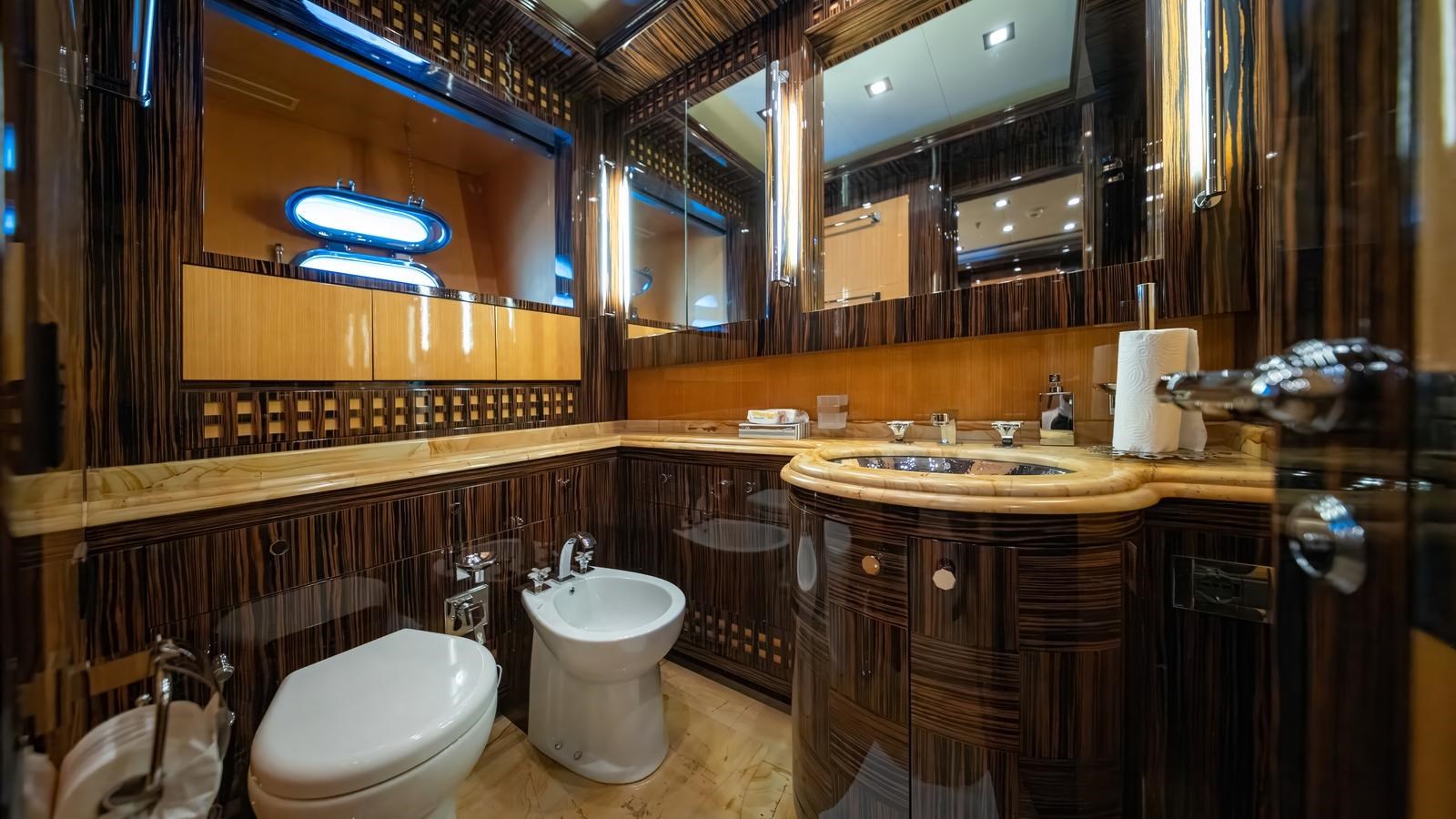

• Head featuring:
  • Sink
  • Shower
  • Toilet
  • Bidet

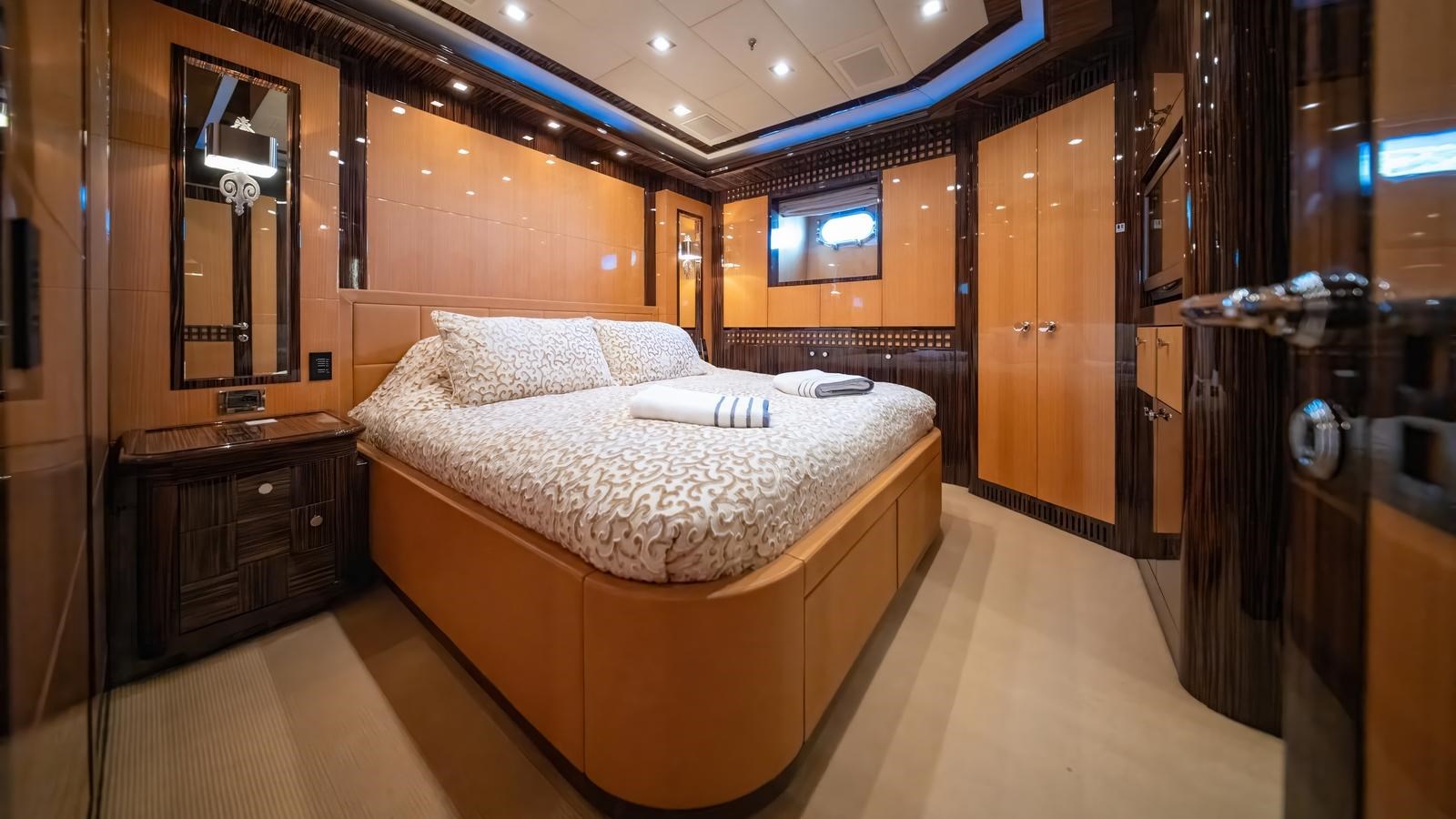

2 Double Cabins:

• Double-sized bed in each cabin
• Built-in desk
• Heads featuring:
  • Sink
  • Shower
  • Toilet
  • Bidet

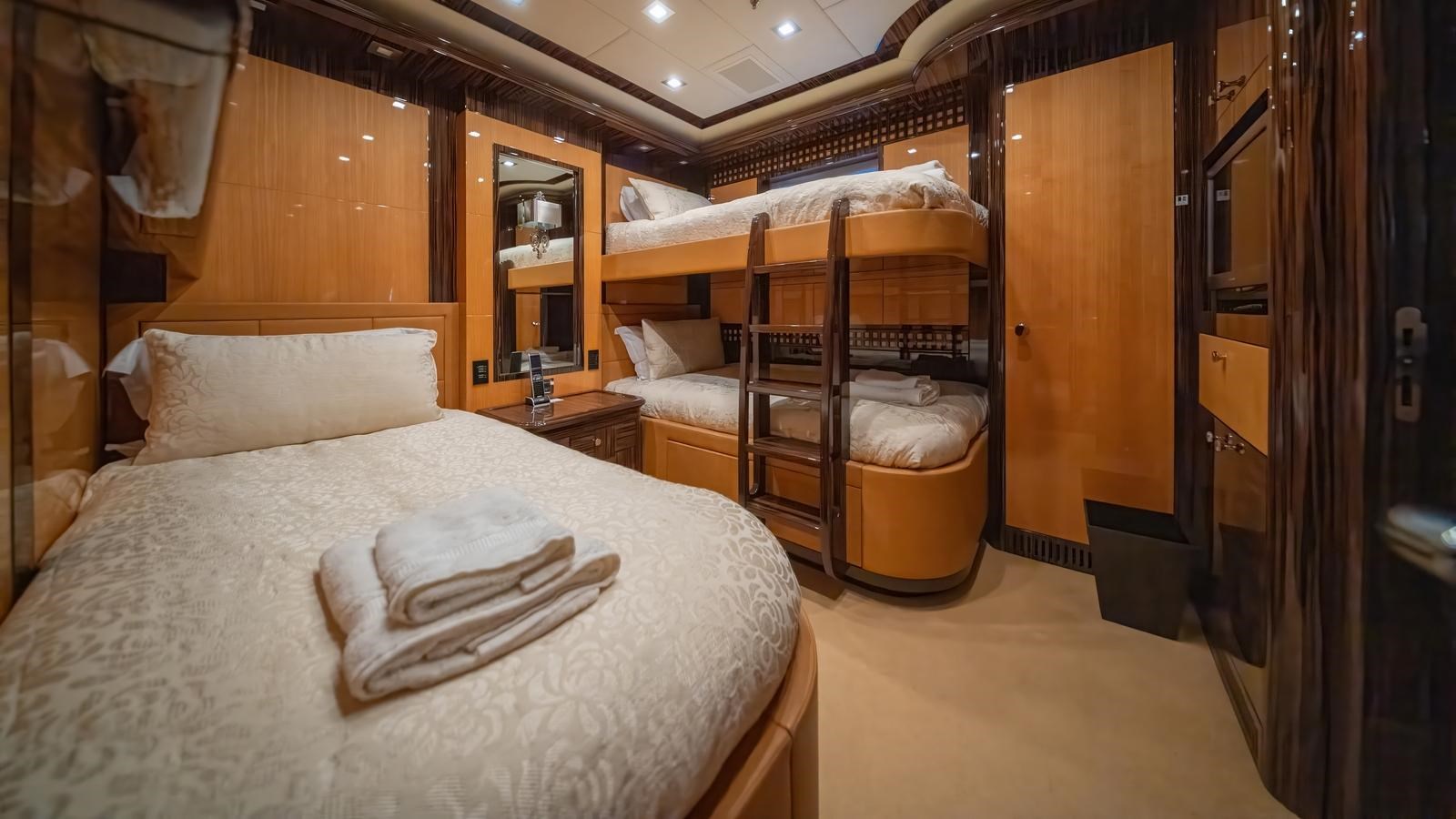

2 Single Cabins:

• Single-sized beds in each cabin, one cabin includes bunk beds, a standalone single bed, and a pullman.
• Heads featuring:
  • Sink
  • Shower
  • Toilet
  • Bidet

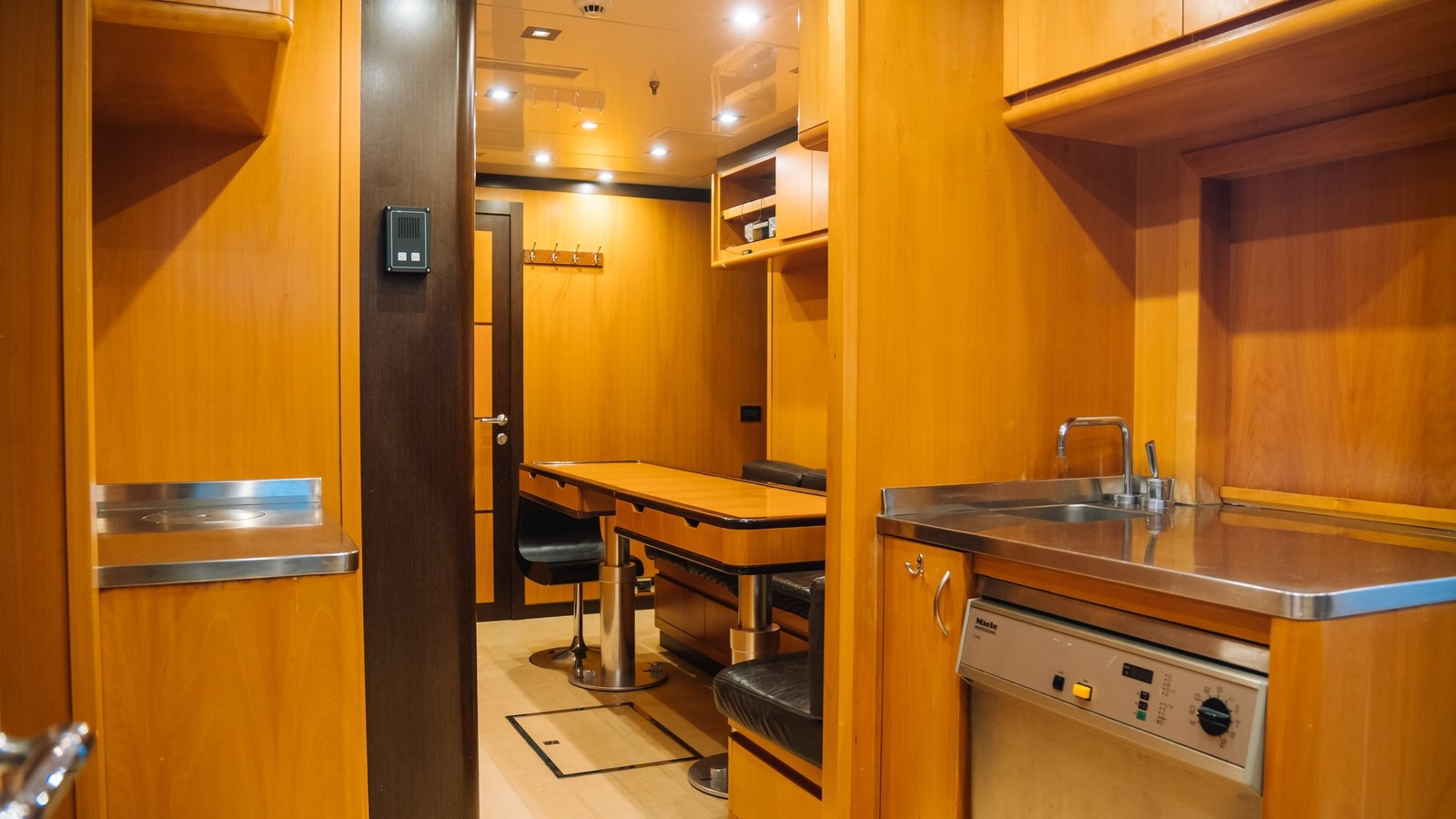

Crew Quarters:

Accommodations for up to 9 crew members in 5 cabins.

Services Completed by Pruva Marin 3/22/25:

• Roll Bar DRS2DNXT Radar Installation
• Roll Bar Satellite Compass SCX20/Roof Installation

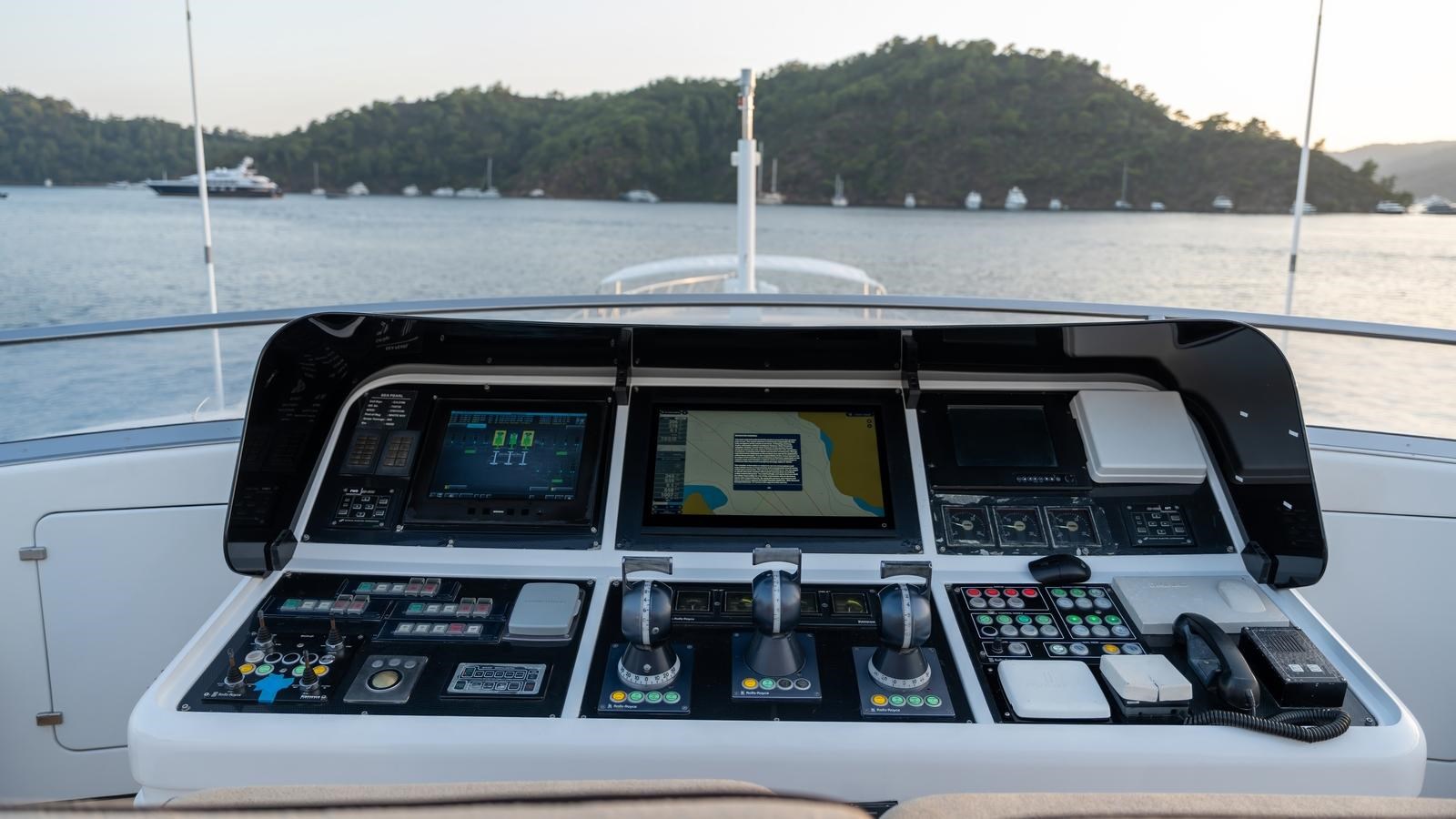

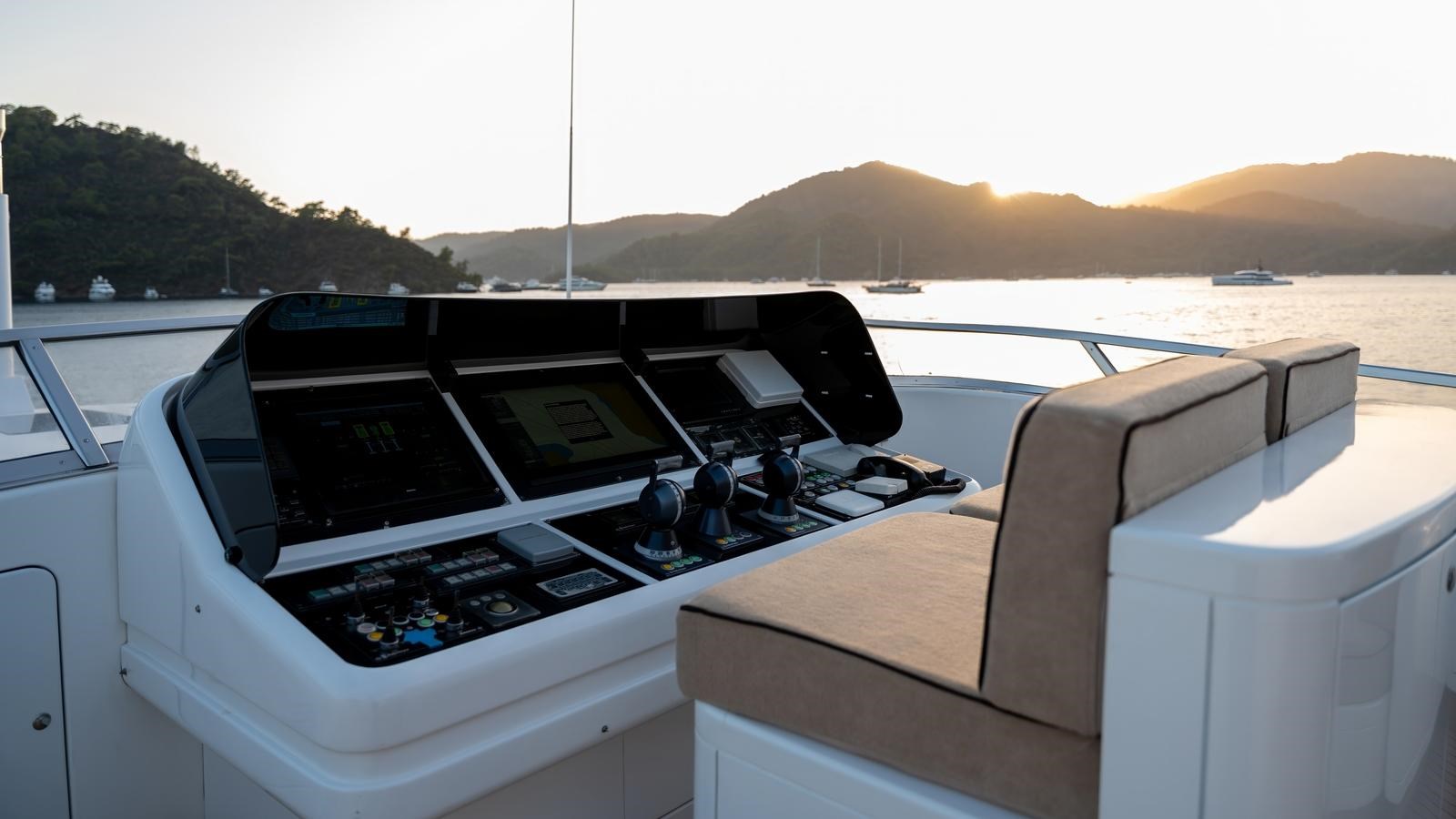

• Flybridge TZT22XL NavNet TZtouchXL Installation
• Bridge Furuno FMD 3100 ECDIS Installation
• Bridge Switching HUB-100 Installation
• Bridge Sensor Adapter MC-3000 Installation
• Bridge Intelligent HUB HUB-3000 Installation
• Bridge Time Zero PC Assembly done
• NMEA 183 Connections were made to the ECDIS system
• NMEA 2000 Connection
• Radar Overlay
• Screen Assembly
