Vessel Name: SOYASLAN CUSTOM
Builder: SOYASLAN MARINE
Model Year: 2027
Year Built: 2027
Category: Motor Yacht
Country: Turkey
MLS #: 450754
Heads: 8
Sleeps: 12
Staterooms: 6
Crew Berths: 13
Crew Sleeps: 13
Length: 39.95 (39.95m)
Draft: 13' 3" (4.03m)
Beam: 29' 7" (9m)
Cruise Speed: 12 Knots
Max Speed: 14 Knots
Manufacturer: MAN
Model: TIER 3
Engine Type: Inboard
Fuel Type: Diesel
Horsepower: 1875
Manufacturer: MAN
Model: TIER 3
Engine Type: Inboard
Fuel Type: Diesel
Horsepower: 1875

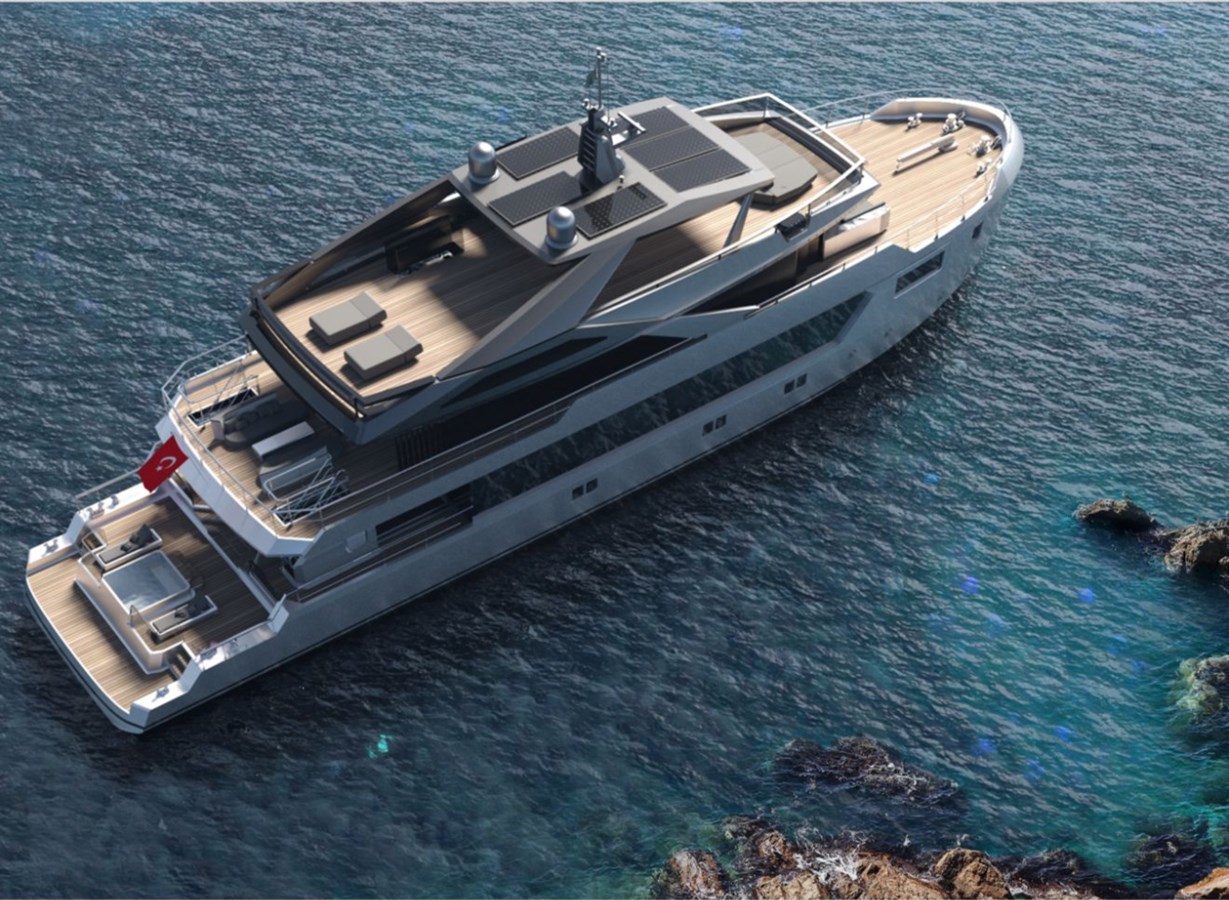

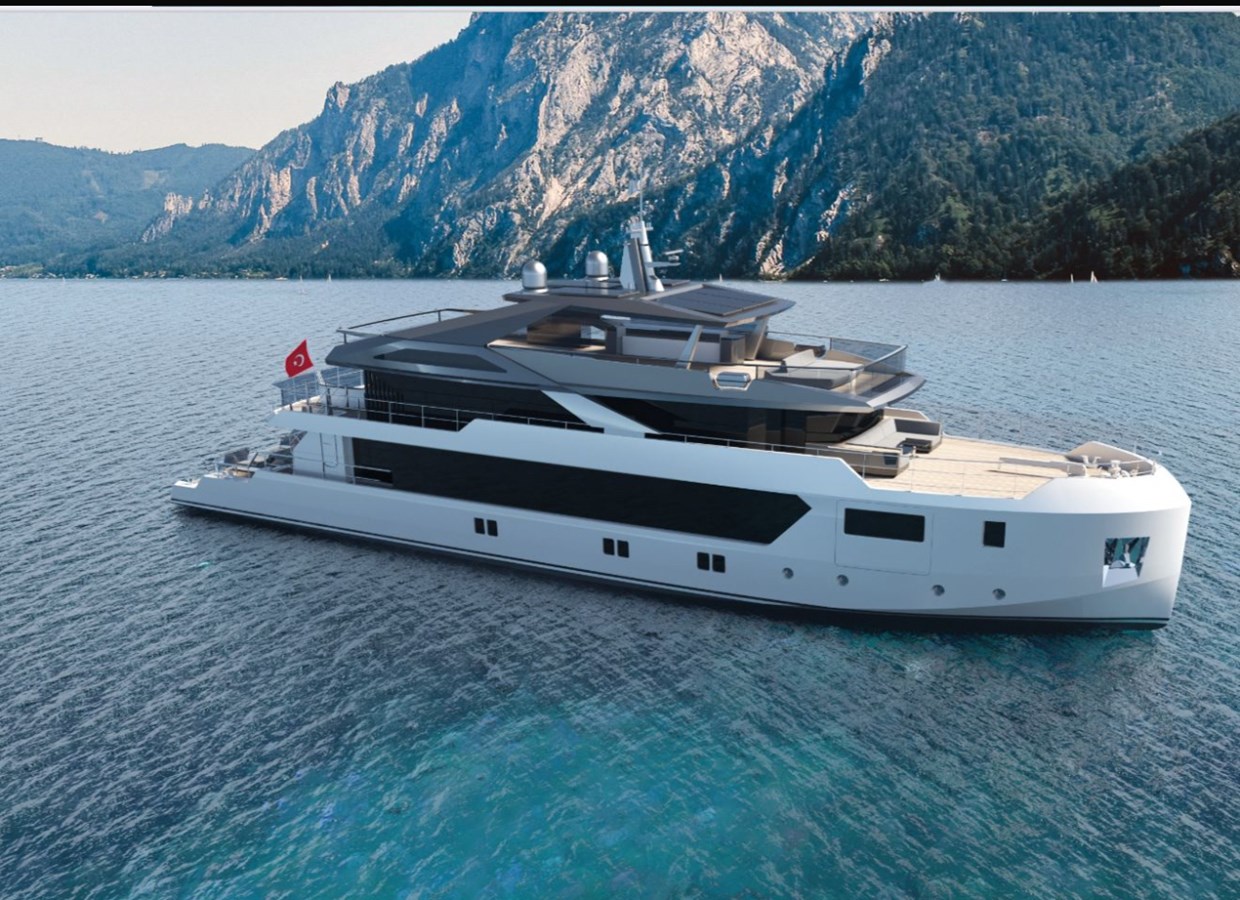

This 39.95m passenger yacht project was left in an unfinished state and remains as shown. Designed to accommodate 12 guests in 6 cabins, she offers ample living space and flexible layout options. The yacht is available for purchase as-is, or you may complete the construction and finish her according to your preferences.
Specifications
General Information
Yacht Name: NIRVANA
Type: Passenger Yacht
Flag: Palau
Classification: Bureau Veritas (✠ HULL • MACH CHARTER YACHT – motor – S Unrestricted Navigation)
Dimensions
Length Overall (LOA): 39.95 m
Waterline Length (LWL): 39.81 m
Beam: 9.00 m
Draft: 2.30 m
Depth: 4.03 m
Gross Tonnage: 390 GT
Displacement: 316 tonnes
Performance
Maximum Speed: 14 knots
Cruising Speed: 12 knots
Capacity
Crew Capacity: 13
Engines & Machinery
Main Engines: 2 × Doosan 4V222TIH (588 kW @ 1800 RPM)
Reduction Gears: 2 × Doosan (3.02:1, with trolling valve)
Propellers: 2 × 1275 mm, 4-blade ERC propellers
Bow Thruster: 55 kW ERC
Generators: 2 × Doosan AD136 (93 kW each)
Sewage Treatment: ACO Clarimar MF3 with vacuum interface
Electrical & Systems
Electrical System: BV certified wiring & distribution panels
Navigation lights installation completed
Bilge & fire systems with electric-controlled valves
Outfitting
Anchors: 2 × 360 kg HHP with 275 m chain (BV certified)
Anchor Windlasses & Capstans: DATA brand with steel bell
Steering Gear & Rudders: DATA brand
Hydraulic Fore Crane: 10 ton.m with electro-hydraulic power pack
Air Conditioning: 360,000 BTU chilled water system with fresh air makeup units
Watertight doors (in-house designed & tested)
Scuba Compressors: 1 × Coltri LP 300, 2 × Coltri MCH16 Mark 3
56 Aluminum Anodes (5-year replacement cycle)
